Board size: Approx. 20.5mm x 10.16mm x 5.6mm / 0.81″ x 0.40″ x 0.22″
Input voltage: 3~6V, Output: 12V
Maximum input current: 1.2A
Long-term working current: 1A
Conversion efficiency: 80-90%
Start voltage: 2.8V, Output current: 50mA
Input: 3V 1A; Output: 12V 220mA
Input: 3.3V 1A; Output: 12V 250mA
Input: 3.7V 1A; Output: 12V 280mA
Input: 4.5V 1A; Output: 12V 340mA
Input: 5V 1A; Output: 12V 370mA
Input: 6V 1A; Output: 12V 450mA
DC-DC boost module working frequency: 1.0MHz
Operating ambient temperature: -40 to +85℃
2.54mm pin pitch, for Arduiuo UNO DUE breadboard FPGA/CPLD development board

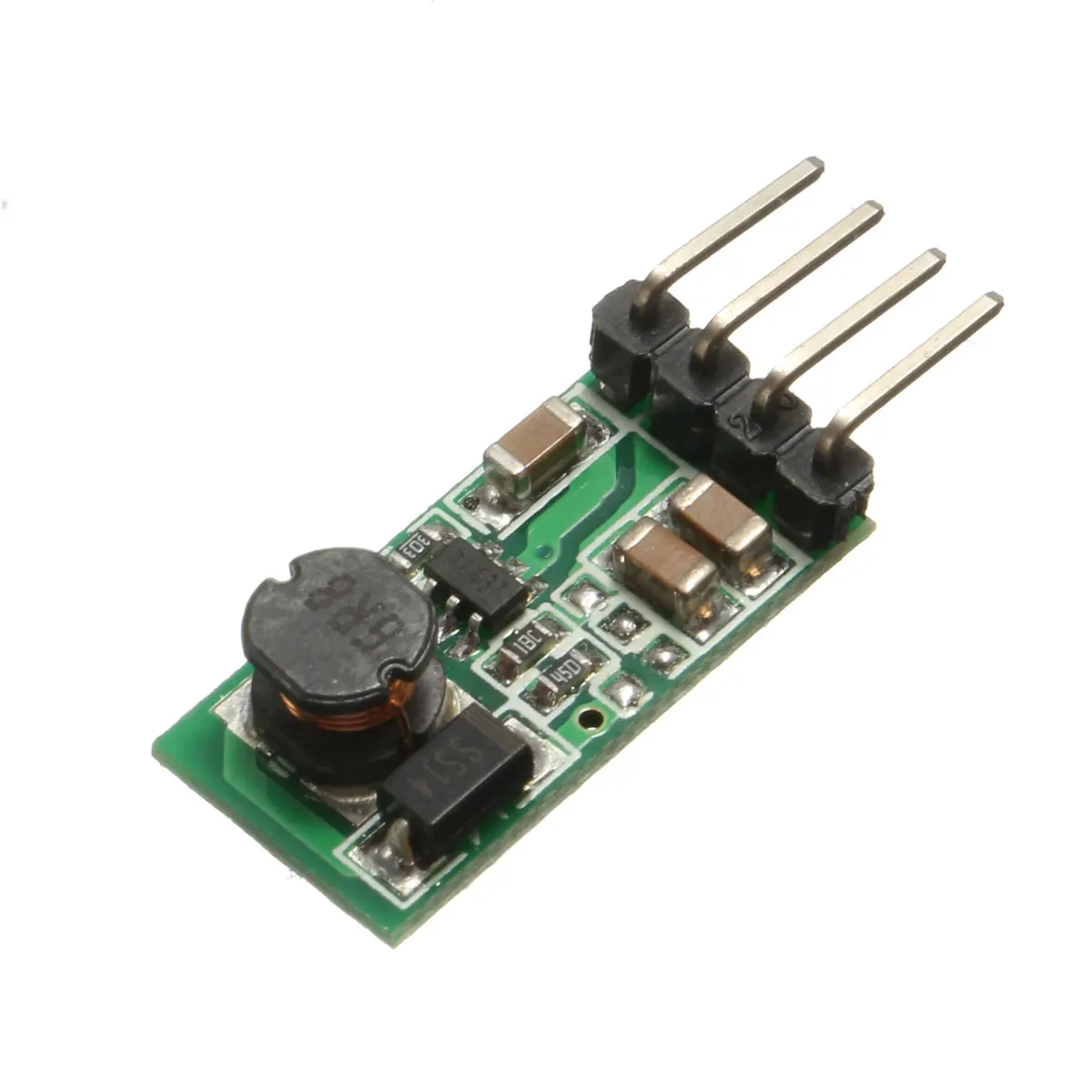

1 x DC 3.3V 3.7V 5V 6V to 12V Boost Voltage Board
